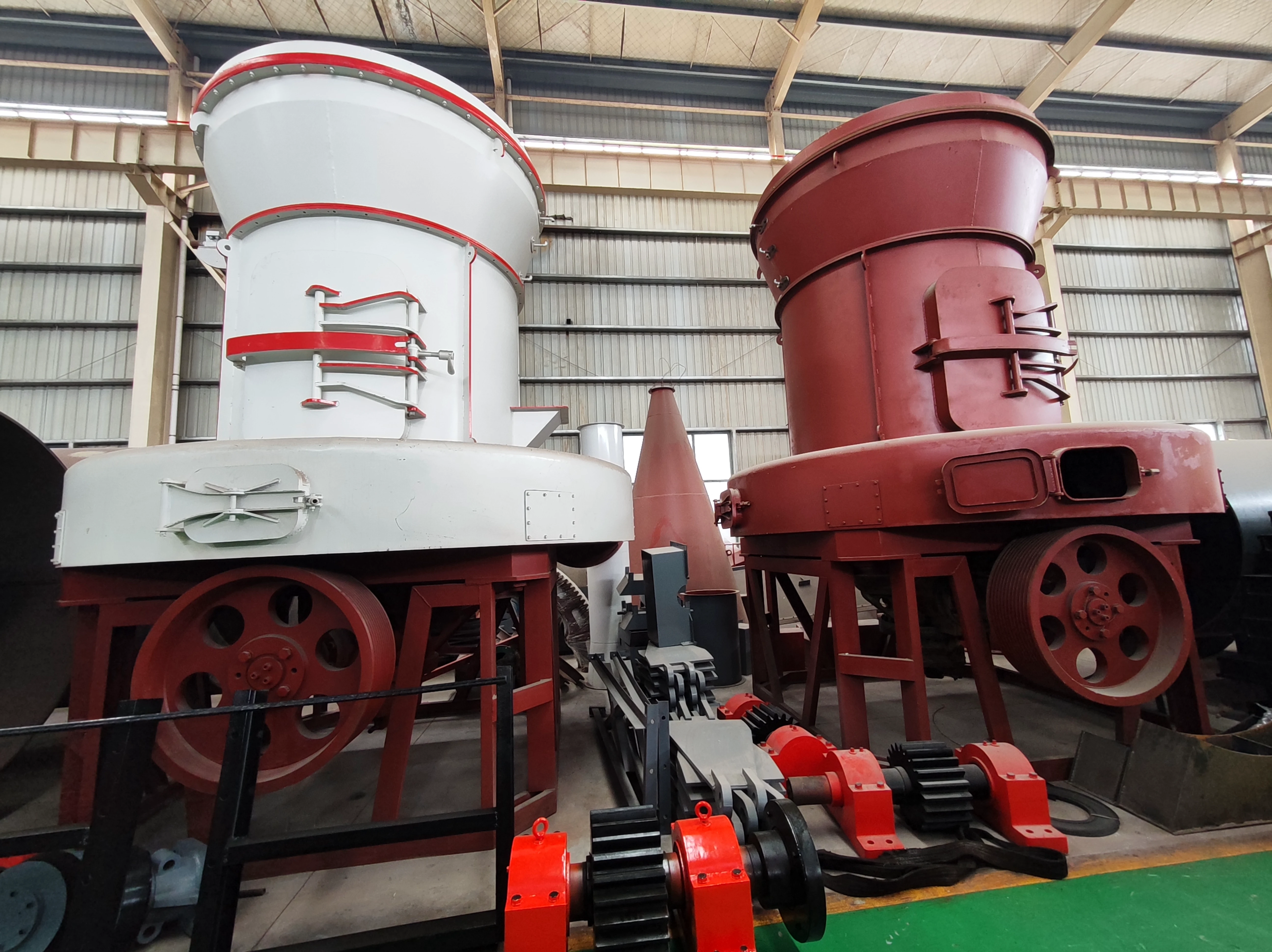

Limestone Raymond Mill Introduction:
Limestone Raymond Mill is a high-efficiency micro-powder mill developed based on the principle of fluid mechanics and comparable to airflow mills, thus solving the problem of high cost of airflow mills in China and the difficulty of ultra-fine powder classification. The output and energy consumption have reached national standards and are well received by users in various industries.
Limestone Raymond Mill Structural Characteristics and Working Principle:

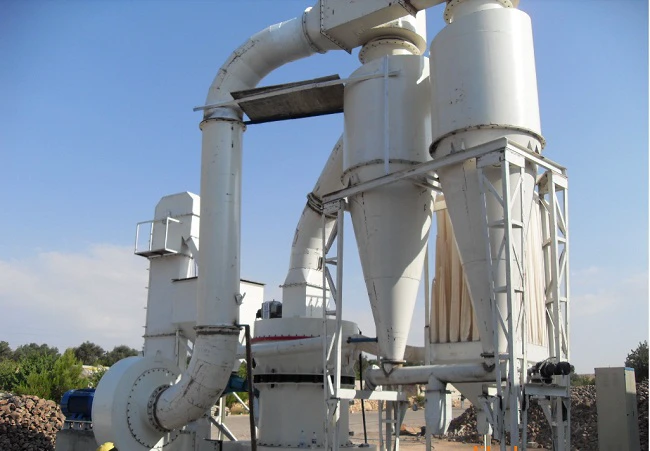

Limestone Raymond mill is mainly composed of main machine, blower, ultrafine analyzer, finished product cyclone powder collector, bag dust collector and connecting air duct, etc. According to customer needs, the site can also be equipped with auxiliary equipment such as elevator, storage bin, electric control cabinet, powder feeder, crusher, etc. In the grinding room of lime Raymond mill, the roller assembly is suspended on the roller hanger through the cross arm shaft, and the roller hanger is fixedly connected with the main shaft and the scraper frame. The pressure spring is tightly pressed on the outer end of the cantilever of the roller bearing room by the tension rod. With the cross arm shaft as the support point, the roller is tightly pressed on the inner surface of the grinding ring by the spring force. When the motor rotates through the transmission device, the scraper installed on the scraper frame rotates synchronously with the roller. The roller rolls on the inner surface of the grinding ring and rotates around itself at the same time. The analyzer drives the impeller of the analyzer to rotate through the motor transmission device. The rotation speed of the analyzer determines the powder fineness.
Main performance characteristics of limestone Raymond mill:
1. It has a wide range of applications and can grind a variety of materials with hardness below level 6.
2. Under the action of high-pressure springs, the fineness of the finished product is greatly improved.
3. Compared with airflow mills, the system has low energy consumption.
4. Low investment, high efficiency and fast recovery.
5. It is a self-contained system with few production links. Materials below 25mm can be directly processed by the machine.
6. No pollution, and the dust removal effect fully meets the national standards.
7. The sealing effect of the grinding roller device is good.
Limestone Raymond Mill Technical Parameters:
