The disc root crusher, also known as a disc pulverizer, is a crushing and pulverizing mechanical device used for processing various tree roots, stumps, logs, and knots. The disc root crusher is a mechanical device employed in the preliminary stage of wood powder production. The mobile disc root crusher can process pine wood, spruce wood, miscellaneous wood, fir wood, and raw bamboo. It is widely applicable in the material preparation section of small and medium-sized particleboard and fiberboard production enterprises. The miscellaneous wood crusher can also be used by individuals for the production of commercial wood chips. The mobile disc root crusher is an equipment for producing high-quality sawdust powder, extensively utilized in the material preparation sections of industries such as papermaking, particleboard, and medium-density fiberboard production, as well as standalone wood chip production bases.
Performance characteristics
The application of advanced technology, combined with the offset feed inlet and the material-feeding teeth installed on the inner wall of the feed hopper, serves to assist in feeding. Additionally, the equipment employs frequency conversion technology, which causes the feed hopper to rotate in reverse once the rotor load becomes excessive.
2. Easy maintenance and repair: The hydraulic material bin tilting device enables large-angle tilting when the machine requires maintenance, exposing the rotor section for convenient servicing and reducing manual labor.
3. Low production cost: The equipment employs a multi-blade rotor knife roller, with rational arrangement and the use of advanced materials, which extends the blade lifespan and reduces production costs.
4. The machine boasts a high level of automation, with all electrical components under automated control. It supports remote wireless operation via remote control, reducing manual intervention while further ensuring production safety.

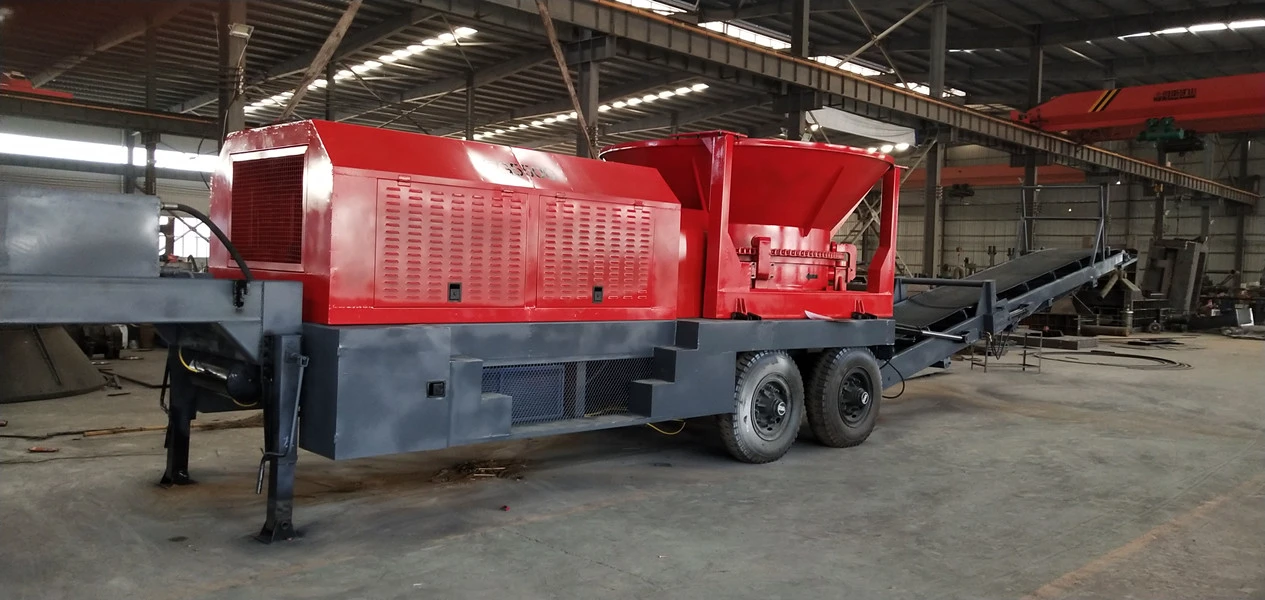

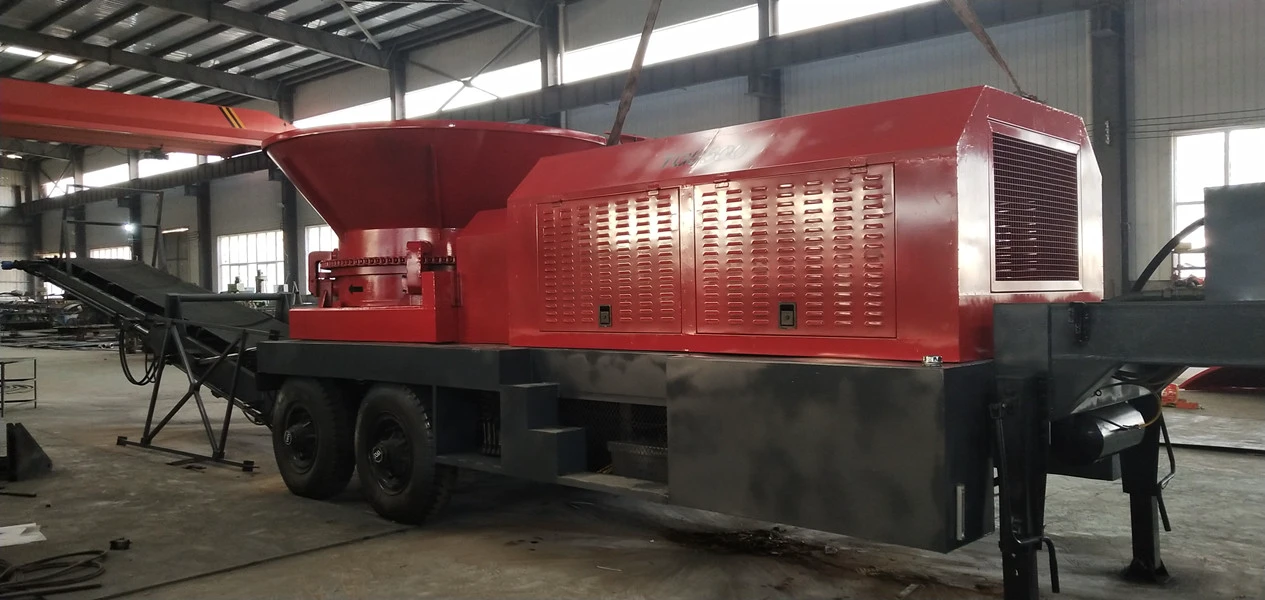

5. The mobile disc crusher adds a mobile platform and is converted to diesel engine drive on the original fixed foundation, enhancing the equipment’s mobility and enabling the entire set of equipment to operate in different locations, thereby improving production efficiency.
6.The feed inlet of the device, combined with the material-moving teeth installed on the inner wall of the feed hopper, serves to assist in feeding. Additionally, the equipment incorporates a frequency converter, which enables the feed hopper to rotate in reverse when the rotor load becomes excessive.
7. Easy maintenance: The hydraulic material box tilting device allows for large-angle tilting when the machine requires servicing, exposing the rotor section for convenient maintenance and reducing the need for manual labor.
8. The mobile disc crusher employs a multi-blade rotor drum, with a reasonable arrangement that enhances the service life of the blades.
9. The entire set of equipment incorporates automated control, enabling remote operation, reducing manual intervention, and further ensuring production safety.

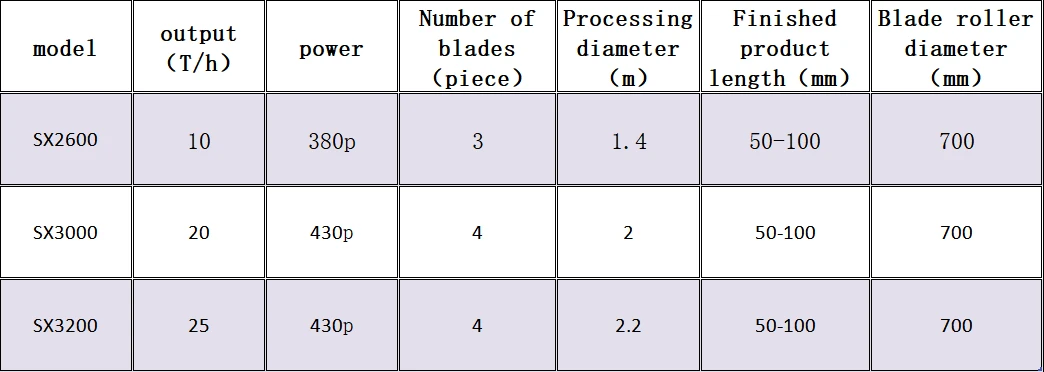

Technical Specifications
